FlexPoint® 10FL/2

10Mbps Coax to Fiber Media Converter

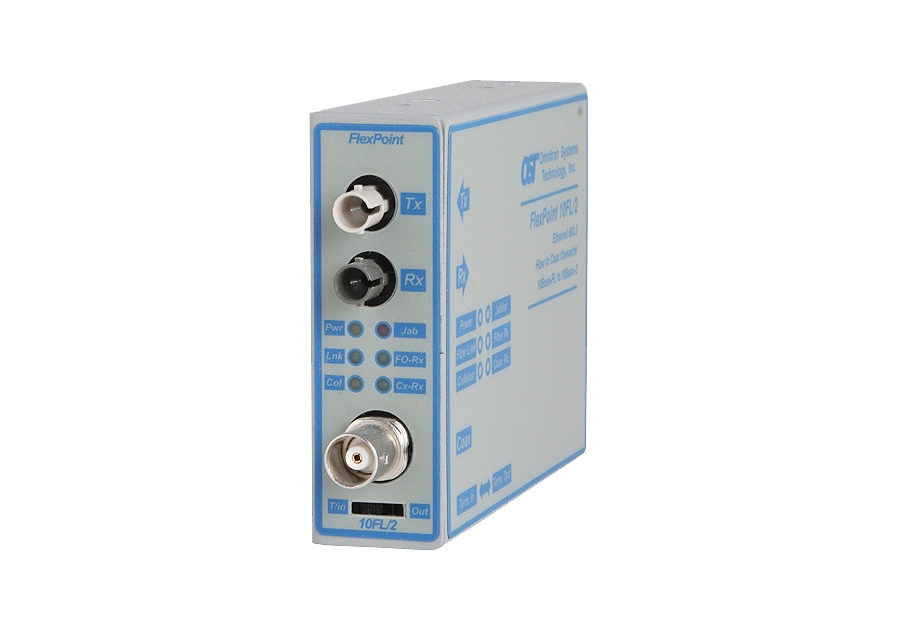

The FlexPoint 10FL/2 is a 10BASE-FL fiber to 10BASE-2 coax media converter. The FlexPoint 10FL/2 connects and extends coax segments via fiber.No manual configuration is required with the plug-and-play FlexPoint 10FL/2. Connect the fiber and coax cables and the installation is complete. The fiber port operates at 850nm or 1310nm and features ST connectors. Multimode fiber models support distances of up to 5km, and the single-mode fiber model supports a distance of 30km.



Features


Not Recommended for New designs. View the replacement bundle solution application note here.

  • The FlexPoint 10FL/2 is a 10BASE-FL fiber to 10BASE-2 coax media converter

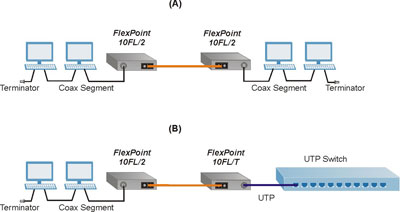

  • Seamlessly connects and extends 10BASE-2 coax network segments via fiber
  • Features convenient, switch-selectable coax line termination to save cost and space
  • Extends network distances up to 30km
  • Labeled status LEDs for quick and easy installation
  • Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint Powered Chassis
  • Completely software independent with no installation of drivers required
  • Made in the USA
  • Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support




Description


The FlexPoint 10FL/2 is a 10BASE-FL fiber to 10BASE-2 coax media converter. The FlexPoint 10FL/2 connects and extends coax segments via fiber.

No manual configuration is required with the plug-and-play FlexPoint 10FL/2. Connect the fiber and coax cables and the installation is complete.

The fiber port operates at 850nm or 1310nm and features ST connectors. Multimode fiber models support distances of up to 5km, and the single-mode fiber model supports distances up to 30km.

The FlexPoint 10FL/2 features a BNC connector supporting 50 ohm cabling with distances up to 185m. Per IEEE 802.3 standard, up to 30 workstations can be attached to the coax segment. A termination switch provides a convenient 50 ohm cable termination.

Descriptions of the LED indicators are provided on the label for easy in-the-field installation and maintenance. The LEDs report the availability of power, port activity and link status, collision and jabbers.

FlexPoint modules can be mounted utilizing optional wall-mounting hardware or with DIN-rail mounting brackets. They can also be rack-mounted in a 5-Module shelf or in a high-density 14-Module, power-redundant Powered Chassis.

FlexPoint modules installed in the 5-Module shelf or used as standalone devices can be powered by an external AC to DC power adapter, or through the 5VDC chassis connector. Standalone modules can also be powered by attaching an external DC power supply (18-60VDC). When used in the 14-Module power-redundant Powered Chassis with any combination of AC and DC power supplies, the installed modules are powered via the 5VDC chassis connector.

The wide variety of FlexPoint mounting and power options provide flexible upgrade paths as network requirements change and grow.

FlexPoint unmanaged media converters are easy to use and provide dependable fiber connectivity in Enterprise and Government networks around the world.





Examples

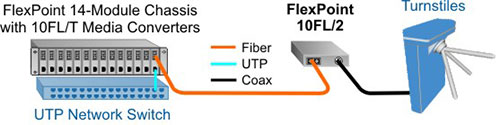

n the application, a FlexPoint 10FL/2 media converter is used to connect a Turnstile that is located beyond the distance supported by the coax infrastructure. Turnstile can be located in areas such as Mass Transit Stations, Airports, Stadiums, Amusement Parks, Office Lobbies, Ski Resorts and Casinos.

Turnstils App 10fl2

At the head end, a FlexPoint 10FL/T fiber-to-copper media converter is used to convert the copper connection from the network switch to fiber. The fiber cabling extends out to the FlexPoint 10FL/2 that converts the fiber to coax and connects to the Turnstile. The network switch gathers data from the Turnstile, allowing or denying entry.

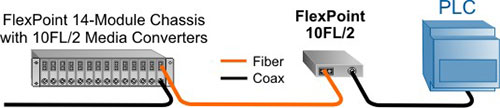

In this second application, a pair of FlexPoint 10FL/2 fiber to coax media converters are providing a 10Mbps Ethernet connection to a remote PLC device. The 10BASE-2 coax connector on the FlexPoint 10FL/2 supports RG-58 50 ohm coax cabling with distances up to 185m.

PLC App 10fl2





Specifications


Description
 FlexPoint 10FL/2
10BASE-FL Fiber to 10BASE-2 Coax Media Converter
Standard Compliances
 IEEE 802.3
Regulatory Compliances
 UL, CE, FCC Class A, RoHS, WEEE, REACH
Port Types
Coax:
Fiber:
10BASE-2 (BNC)
10BASE-FL (ST)
Cable Types
Coax:
Fiber:
50 ohm, RG-58/U, RG-58C/U or equiv
Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC Adapter:
100 - 240VAC/50 - 60Hz
0.09A @ 120VAC (typical)
DC Power Requirements

Voltage Range:
Nominal Voltage:
Nominal Power:
Barrel Connector
6.0 to 15.0VDC
9VDC
0.8A @ 9VDC
Molex Connector
4.75 to 5.25VDC
5VDC
0.8A @ 5VDC
Dimensions
W x D x H
 3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight
 Without AC Adapter:
6 oz. (170.1 grams)
Temperature
 Commercial:
Storage: 		    0 to 50°C
-40 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
 Without AC Adapter (-0):
With AC Adapter (-1):
With AC Adapter (-2): 		 1,200,000
250,000
100,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support




Ordering


Fiber
Type
Distance
Connector Type
Tx
Lambda

(nm)
Rx
Lambda

(nm)
Min. Tx
Power

(dBm)
Max. Tx
Power

(dBm)
Min. Rx
Power

(dBm)
Max. Rx
Power

(dBm)
Min.
Attenuation

(dB)
Link
Budget

(dB)
ST
MM/DF
2km
4310-p
850
850
-21
-11
-31
-11
-
10
MM/DF
5km1
4312-p
1310
1310
-21
-11
-31
-11
-
10
SM/DF
30km1
4311-p
1310
1310
-15
-8
-31
-8
-
16
 1 When operating in half-duplex, the maximum distance is 2km.
 MM = Multimode, SM = Single-mode, DF = Dual Fiber
Base Model Number: 43xx-p
Select the model from ordering table above.
Add power option (p) to the model type selected.
Power Options (p):
-0 = Barrel Connector, No AC/DC Power Adapter
-2 = Barrel Connector and Universal AC/DC Power Adapter,
100-240VAC, 50-60Hz (requires AC power cord)
-1 = Barrel Connector and US AC/DC Power Adapter, 100-240 VAC, 50-60Hz
Contact Omnitron for other operational temperature ranges and RoHS (5/6) compliant models



Accessories
Model NumberDescriptionModel NumberDescription
4385 FlexPoint 14-Module Chassis with two 48VDC Power Supplies 4395 FlexPoint 14-Module Chassis with two AC Power Supplies
4386 FlexPoint 14-Module Chassis with one 48VDC Power Supply 4396 FlexPoint 14-Module Chassis with one AC Power Supply
4389 Spare 48VDC Power Supply 4399 Spare AC Power Supply
4392 FlexPoint 5-Module Rack-Mount Shelf 4380 FlexPoint Wall-Mounting Hardware Kit
4384
FlexPoint DC to DC Power Adapter
Input: 18-60VDC Output: 5VDC
 4384-W
FlexPoint DC to DC Power Adapter
Input: 18-60VDC
Output: 5VDC Wide Temperature Model (-40 to 60°C)
8250 FlexPoint DIN-Rail Mounting Kit 4381 Wall-Mounting Hardware Kit for DC to DC Power Adapter (4384)
