FlexPoint® 10FL/T

10BASE-FL to 10BASE-T Media Converter

The FlexPoint 10FL/T is a 10BASE-T copper to 10BASE-FL fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.The RJ-45 port auto-negotiates the duplex mode of the attached device for plug-and-play installations. The port detects and corrects wiring polarity reversals, and features a crossover switch that eliminates the need for a crossover cable and facilitates connectivity to network equipment such as hubs, switches and workstations.



Features


  • 10BASE-T copper to 10BASE-FL fiber media converter
  • RJ-45 port automatically supports Full or Half-Duplex
  • Features a crossover switch for easy connection to hubs, switches or workstations
  • Extends network distances up to 120km
  • Supports Link Propagate for the remote detection of link faults
  • Supports most network interfaces with a wide variety of cable and connector types
  • Labeled status LEDs for quick and easy installation
  • Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint Powered Chassis
  • Completely software independent with no installation of drivers required
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support




Description


The FlexPoint 10FL/T is a 10BASE-T copper to 10BASE-FL fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.

The RJ-45 port auto-negotiates the duplex mode of the attached device for plug-and-play installations. The port detects and corrects wiring polarity reversals, and features a crossover switch that eliminates the need for a crossover cable and facilitates connectivity to network equipment such as hubs, switches and workstations.

The fiber port operates at 850nm, 1310nm or 1550nm, and features ST or SC connectors. Multimode fiber models support distances of up to 5km, and single-mode fiber models support distances of up to 120km.

The FlexPoint 10FL/T supports Link Propagate, which is a fault detection tool that provides a local indication of a remote link loss by disabling the port and propagating the loss of link from one port to the other.

The FlexPoint 10FL/T features descriptions of the LED indicators on the label for easy in-the-field installation and maintenance. The LEDs report the availability of power, port activity and link status, speed and duplex modes.

FlexPoint modules can be mounted utilizing optional wall-mounting hardware or with DIN-rail mounting brackets. They can also be rack-mounted in a 5-Module shelf or in a high-density 14-Module, power-redundant Powered Chassis.

FlexPoint modules installed in the 5-Module shelf or used as standalone devices can be powered by an external AC to DC power adapter, or through the 5VDC chassis connector. Standalone modules can also be powered by attaching an external DC power supply (18-60VDC). When used in the 14-Module power-redundant Powered Chassis with any combination of AC and DC power supplies, the installed modules are powered via the 5VDC chassis connector.

The wide variety of FlexPoint mounting and power options provide flexible upgrade paths as network requirements change and grow.

FlexPoint unmanaged media converters are easy to use and provide dependable fiber connectivity in Enterprise and Government networks around the world.





Examples

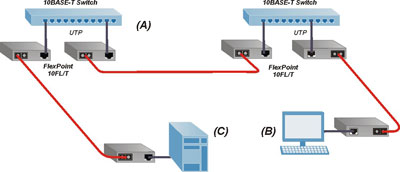

A pair of FlexPoint 10FL/T media converters are used to connect two 10BASE-T switches (A) via fiber. A workstation (B) and file server (C) are connected to the network using pairs of FlexPoint 10FL/T media converters. The converters are configured for Full-Duplex operation. In each case, multimode or single-mode fiber can be used, and fiber links can be extended up to 120km using single-mode fiber.

FlexPoint 10FL T app1

In this second application, a FlexPoint 10FL/T media converter is used to connect a Turnstile that is located beyond the distance supported by the copper infrastructure. Turnstile can be located in areas such as Mass Transit Stations, Airports, Stadiums, Amusement Parks, Office Lobbies, Ski Resorts and Casinos.

FlexPoint 10FL T app2

At the head end, a FlexPoint 10FL/T fiber-to-copper media converter is use to convert the copper connection from the network switch to fiber. The fiber cabling extends out to the FlexPoint 10FL/T that converts the fiber to coax and connects to the Turnstile. The network switch gathers data from the Turnstile, allowing or denying entry.





Specifications


Description FlexPoint 10FL/T
10BASE-T Copper to 10BASE-FL Fiber Media Converter
Standard Compliances IEEE 802.3
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA, NDAA

Environmental RoHS, WEEE, REACH
Frame Size Supports unlimited frame sizes
Port Types Copper:
Fiber:
10BASE-T (RJ-45)
10BASE-FL (ST,SC)
Cable Types Copper:
Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher
Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC Adapter:
100 - 240VAC/50 - 60Hz
0.2A @ 120VAC (typical)
DC Power Requirements



Voltage Range:

Nominal Voltage:

Nominal Power:

Barrel Connector

8.0 to 15.0VDC

9VDC

0.2A @ 9VDC

 Molex Connector

4.75 to 5.25VDC

5VDC

0.5A @ 5VDC

Dimensions (W x D x H)

3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)

Weight

Without AC Adapter:

6 oz. (170.1 grams)

Temperature Commercial:
Storage:
0 to 50°C
-40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m
MTBF (hrs)

Without AC Adapter (-0):

With AC Adapter (-1):

With AC Adapter (-2):

1,700,000

250,000

100,000

Warranty Lifetime warranty with 24/7/365 free Technical Support




Ordering


Step 1: Choose a Base Part Number (xxxx-p)

Fiber
Type
Distance
Connector Types
Tx
Lambda

(nm)
Rx
Lambda

(nm)
Min. Tx
Power

(dBm)
Max. Tx
Power

(dBm)
Min. Rx
Power

(dBm)
Max. Rx
Power

(dBm)
Min.
Attenuation

(dB)
Link
Budget

(dB)
ST
SC
MM/DF
2km
4300-p
4303-p
850
850
-21
-11
-31
-11
-
10
MM/DF
5km
4302-p
-
1310
1310
-21
-11
-31
-11
-
10
SM/DF
30km
4301-p
-
1310
1310
-15
-8
-31
-8
-
16
SM/DF
60km
4304-p
-
1310
1310
-5
0
-31
-3
3
26
SM/DF
85km
-
4306-p
1550
1550
-7
0
-28
-3
3
21
SM/DF
120km
-
4307-p
1550
1550
-5
0
-31
-3
3
26

MM = Multimode, SM = Single-mode, DF = Dual Fiber

Contact Omnitron for other fiber options, operational temperature ranges and RoHS (5/6) compliant models.

Step 2: Choose your Power Option (xxxx-p)

-0 = Barrel Connector, No AC/DC Power Adapter
-1 = Barrel Connector and US AC/DC Power Adapter, 100-240 VAC, 50-60Hz
-2 = Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)

Operating Temperature

Commercial temperature (0 to 50°C)





  -1 = Barrel Connector and US AC/DC Power Adapter, 100-240 VAC, 50-60Hz

Wall Wort PS flexpoint

 -2 = Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)

Universal PS flexpoint





Accessories

Model NumberDescriptionModel NumberDescription
4385 FlexPoint 14-Module Chassis with two 48VDC Power Supplies 4395 FlexPoint 14-Module Chassis with two AC Power Supplies
4386 FlexPoint 14-Module Chassis with one 48VDC Power Supply 4396 FlexPoint 14-Module Chassis with one AC Power Supply
4389 Spare 48VDC Power Supply 4399 Spare AC Power Supply
4392 FlexPoint 5-Module Rack-Mount Shelf 4380 FlexPoint Wall-Mounting Hardware Kit
4384
FlexPoint DC to DC Power Adapter
Input: 18-60VDC Output: 5VDC
4384-W
FlexPoint DC to DC Power Adapter
Input: 18-60VDC
Output: 5VDC Wide Temperature Model (-40 to 60°C)
8250 FlexPoint DIN-Rail Mounting Kit 4381 Wall-Mounting Hardware Kit for DC to DC Power Adapter (4384)
