RuggedNet® 10G/Mi

Managed Industrial 6 and 10 Port 10Gigabit Ethernet Switch



Features


Omnitron’s Industrial Managed 10G Ethernet Switches Features

  • Managed Industrial 1/10G Ethernet Switch with dual DC power
  • Two 1/10G SFP/SFP+ transceiver uplink ports
  • Supports copper and fiber SFP transceivers
  • Supports 10M, 100M, 1G and 10Gbps copper SFP/SFP+ transceivers
  • Four or eight 10/100/1000 copper user ports
  • Supports jumbo frames up to 10,240 bytes
  • Management via Web, Telnet, SSH, SNMPv1/v2c/v3 and serial interfaces
  • Easy to use Hierarchical Command Line Interface
  • SNMP management via Omnitron’s NetOutlook® management software, or third-party SNMP software
  • Supports IPv4 and IPv6 addressing
  • IEEE 802.1x, RADIUS, TACACS+ and ACL
  • Email Notification
  • Rapid and Multiple Spanning Tree Protocol
  • IEC 62439-2 Industrial Ring Media Redundancy
  • IEEE 802.1ax LAG and LACP; Active/Active and Active/Standby
  • Dual Device mode for operating as two separate switches
  • Directed Switch mode AKA Camera mode to prevent port flooding
  • Alarm contacts and sensors
  • Industrial (-40 to 75º C) operating temperature
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Free 24/7/365 Technical Support

ADDITIONAL FEATURES

  • IEEE 802.1Q VLAN tagging and IEEE 802.1ad Q-in-Q
  • Port Access Control for enhanced security
  • Broadcast / Multicast / Unicast Storm Prevention
  • DHCP Relay Option 82, DHCPv6 and DHCPv6 Relay
  • IPv4 Internet Group Management (IGMP) and IPv6 Multicast Listener Discovery (MLD) snooping
  • Rate Limiting, Queue prioritization and Class of Service
  • IEEE 802.1ab Link Layer Discovery Protocol
  • Static MAC configuration and blocking of unknown Unicast/Multicast addresses
  • SNTP / NTP and time of day
  • Wall, Rack and DIN-rail mountable
  • Fan-less design




Description


Industrial Managed 10G Ethernet Switches Overview

The RuggedNet 10G/Mi is a ruggedized industrial managed 10G Ethernet switch that features two 1/10G uplink ports and four or eight 10/100/1000 RJ-45 user ports. The RuggedNet 10G/Mi enables industrial network distance extension with fiber or copper cabling.

The RuggedNet 10G/Mi is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.

The switches support redundant uplinks, industrial ring Media Redundancy Protocol (MRP), Spanning Tree protocol and daisy-chain configurations for high availability industrial network applications.

The ruggedized industrial managed 10G Ethernet switches support Dual Device mode that enables the 10G/Mi to operate as two independent and isolated Ethernet switches. In Dual Device mode, the 10G/Mi provides separate and independent data traffic paths between each uplink port and a group of user ports.

The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. IPv4 and IPv6 are supported on the switches. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email notification and alarm reporting is provided.

The ruggedized industrial managed 10G Ethernet switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T, 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber, dual or single-fiber and standard, CWDM and DWDM wavelengths.

An alarm relay is available to detect user configured events. The relay contact can be configured for normally open or normally closed operation. One alarm input is available for detecting external events such as door open or closed.
The RuggedNet compact industrial Ethernet switches can be wall or rack mounted using a wall mount bracket and shelf or DIN-rail mounted using the included DIN-rail mounting clip. They are available with dual DC input power.





Examples


Industrial Managed 10G Ethernet Switches Applications



Dual Device Mode Application

This Dual Device feature is extremely useful when two isolated networks domains share a single network distribution location.

The example below depicts a scenario where the Quality Control (green) network and the Manufacturing (purple) network are sharing a single hub distribution location. Using the two uplinks and the Dual Switch mode facilitates using a single switch driving both the Quality Control and the Manufacturing devices while maintaining isolation between the networks.

Dual Media Converter Mode 2902 10 G Mi

Daisy-Chain and Ring Topology Network Application

This example demonstrates the daisy chaining and ring capabilities of the RuggedNet. In this application each RuggedNet switch connects to its neighboring switches via its uplink ports eventually closing the ring. The RuggedNet switches are providing connectivity between the workstations and the router.

Using this network architecture combined with ring protection protocols such as Media Redundancy Protocol (MRP) or Rapid Spanning Tree Protocol (RSTP) facilitates a highly resilient network required in mission critical applications.

Industrial Manufactring Application 2902 10 G Mi





Specifications


Industrial Managed 10G Ethernet Switches: Detailed Product Specifications

Description RuggedNet® 10G/Mi
10/100/1000BASE-T with 1/10G Uplink Ports
Ruggedized Managed 6 and 10 Port 10Gigabit Ethernet Switch
Standard Compliances

EEE 802.3, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1ax, IEEE 802.1w RSTP/MSTP

RFC 5424, RFC 4541, RFC 2710, IEC 624339-2, SMTP, SNTP, RADIUS, TACACS+, IEEE 802.1x

Regulatory Compliances
(*Pending)

Safety*: UL 62368-1, UL 60950-1,

               IEC 62368-1, IEC 60950-1,

               EN 62368-1, EN 60950-1,

               CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

               CE Mark,

               UKCA

EMC:      EN 55032/24 CE Emissions/Immunity,

               IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity

EMI:       CISPR 32,

               FCC 47 Part 15 Subpart B Class A

EMS:      IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

               IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (on UTP cabling) and 20 V/m (on STP cabling)

               IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV,

               IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: Signal: 10 V,

               IEC 61000-4-8 ( Magnetic Field), 30A/m, IEC 61000-4-11 (General Immunity in Industrial Environments)

IP Rating: IP40 Protection

ACT: TAA, BAA, NDAA

Environmental REACH, RoHS and WEEE
Management

IPv4 and IPv6 address

Web, Telnet, SSH, SNMPv1/v2c/v3

In-Band management via Ethernet port

Out-of-band management via serial port

Frame Size Up to 10,240 bytes
Port Types

Copper:      10/100/1000BASE-T (RJ-45)


SFP/SFP+: 10GBASE-X Fiber Transceivers

                    10GBASE-T Copper Transceivers

                    1000BASE-X Fiber Transceivers

                    1000BASE-T Copper Transceivers

                    10/100/1000BASE-T SGMII Copper Transceivers

Serial:          RJ-45

Cable Types

Copper: EIA/TIA 568A/B, Cat 5 UTP and higher


Fiber:    Multimode: 50/125, 62.5/125µm

              Single-mode: 9/125µm

Serial:   Category 3 and higher

DC Power Requirements 4 RJ-45 Ports:
+12 to +57VDC;
0.81A @ 12VDC
0.20A @ 48VDC
2 Pin Terminal (isolated)
8 RJ-45 Ports:
+12 to +57VDC;
0.90A @ 12VDC
0.22A @ 48VDC
2 Pin Terminal (isolated)
Alarm Contact (Output)

2 form C Relay for Normally Open and Normally Closed Operation

110VDC/125VAC Maximum Voltage

2A Maximum Current

Alarm Sensor (Input) 2.0ma @ 3.3VDC Closure Detection
Dimensions (W x D x H) 1.5” x 5.5” x 5.5” (38.1 mm x 139.7 mm x 139.7 mm)
Weight 4 RJ-45 Ports:
1.70 lb. (772 grams)
8 RJ-45 Ports:
1.77 lb. (803 grams)
Operating Temperature Extended: -40 to 75°C
Storage: -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs) 285,000
Warranty
5 year product warranty with 24/7/365 free Technical Support




Ordering


How to Order Your Industrial Managed 10G Ethernet Switch


Complete the ordering form and we will expedite a quote through one of our approved distributors.

RuggedNet 10G/Mi Models
Model NumberDescription
2902-0-24-2Z RuggedNet 10G/Mi 2 x SFP/SFP+ uplink port and 4 x RJ-45 ports, Dual DC Terminal Connectors, Industrial Temperature
2902-0-28-2Z RuggedNet 10G/Mi 2 x SFP/SFP+ uplink port and 8 x RJ-45 ports, Dual DC Terminal Connectors, Industrial Temperature
Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Omnitron Optical Transceivers web page. web page.



Accessories

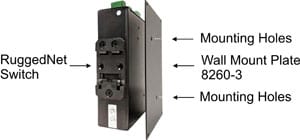

Model NumberDescription Wall Mount Plate
 8260-3  Wall Mounting Plate
 8260-0  19" rack mount shelf
