10/100/1000BASE-T to 1000BASE-X Ethernet Media Converter

• Miniature Gigabit Ethernet media converter
• Supports 10/100/1000BASE-T, 100BASE-X, 1000BASE-X and the IEEE 802.3 specification
• Supports 100Mbps and 1Gbps SFP transceivers for standard, CWDM or DWDM wavelengths
• Small and lightweight (5 ounces)
• Cost-effective
• Supports MDI/MDIX auto-crossover
• Plug-and-Play capability
• Supports Full/Half-Duplex fiber optic auto-negotiation
• Multimode and single-mode fiber options
• LED indicators for RJ-45 and fiber port status
• AC to DC Power Adapter or 2-Pin DC terminal
• USB power via optional Power Adapter Cable
• Wall-mount with optional mounting brackets or install in the miConverter 18-Module Powered Chassis
• Commercial (0 to 50ºC), Wide (-40º to 60ºC), Extended (-40º to 75º C) and Industrial¹ (-40º to 85ºC) temperature ranges
• TAA, BAA and NDAA compliant, and Made in the USA
• Lifetime Warranty and free 24/7 Technical Support

¹ Industrial temperature range is only available on 2-Pin DC terminal connector models.

The miConverter GX/T is a miniature 10/100/1000BASE-T copper to 1000BASE-X fiber media converter that supports jumbo frames. The miConverter GX/T miniature Ethernet media converters provide cost-effective copper-to-fiber connectivity solutions. Due to their size, portability, and low power consumption, they are ideal for fiber-to-the-desktop/laptop under the desk deployments and mission-critical field diagnostic applications.

The miConverter GX/T features fixed fiber connectors and Small Form Pluggable (SFP) transceivers. ST, SC and LC fixed fiber connectors support multimode, single-mode, and single-mode single-fiber. 100BASE-X and 1000BASE-X SFP transceivers enable adaptability to different data rates, fiber types and wavelengths, including Coarse Wave Division Multiplexing (CWDM) wavelengths to increase the bandwidth capacity of fiber infrastructure.

The Plug-and-Play capability of the miConverter GX/T simplifies fiber-to-the-laptop and fiber-to-the-desktop deployments. Both the fiber port and the RJ-45 port support auto-negotiation to achieve the best possible mode of operation (speed, duplex mode and Pause mode) between the devices. The auto-negotiation feature can be disabled on both ports (for manual configuration) using DIP-switches on the module. This is useful in a situation where the GX/T is connected to a non-negotiating device and the configuration parameters must be set manually.

Network flow control is managed by the Pause function (configured via auto-negotiation or manually) that prevents network congestion on both the RJ-45 and fiber ports. When Pause is enabled and the device is experiencing network congestion, it will send out a Pause signal to its link partner, instructing it to slow down data transmission.

The GX/T generates a remote fault indication when it detects link fault conditions, and reports detection of these signals by displaying status on the LED. Through user DIP-switch configuration, the detection of these indicators or link modes can also be propagated to the other port on the GX/T as a means of notifying connected end-devices of the link fault.

Visual diagnostic information is provided through LED indicators that assist in network installation and maintenance. The LEDs report the availability of power, port activity and link status and speed.

The miConverter GX/T combines Gigabit Ethernet connectivity with the lightweight design and low-power consumption required for both permanent deployment and temporary facilities.

This application example illustrates an Ethernet Enterprise network with a star topology that provides multiple fiber links to remote buildings.

In the upper left, three copper UTP links from a core copper switch are converted to three fiber links with a miConverter 18-Module chassis of media converter modules. When fiber core switch is used, the chassis of media converters are not required.

The fiber links run to remote buildings, where the fiber at each location is converted back to copper with a standalone miConverter and distributed to end users at different buildings. In all cases, multimode, single-mode, or single-mode singlefiber can be used.

The application diagram depicts a laptop computer used in a fiber network.

The miConverter connects to the laptop via two cables. The first cable is the USB Power Adapter which draws electrical current from the laptop’s USB (1.0 or 2.0) port to power the miConverter. The other cable is the UTP cable that links the laptop network port and the miConverter copper port. The miConverter converts the UTP signal to fiber signal, which can extend up to 120km. Power from the USB port of the computer is automatically shut off when the computer is powered down, turning off the miConverter when fiber conversion is no longer needed.

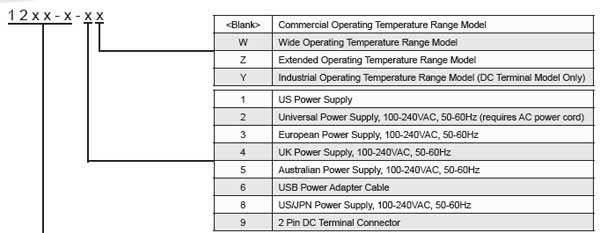

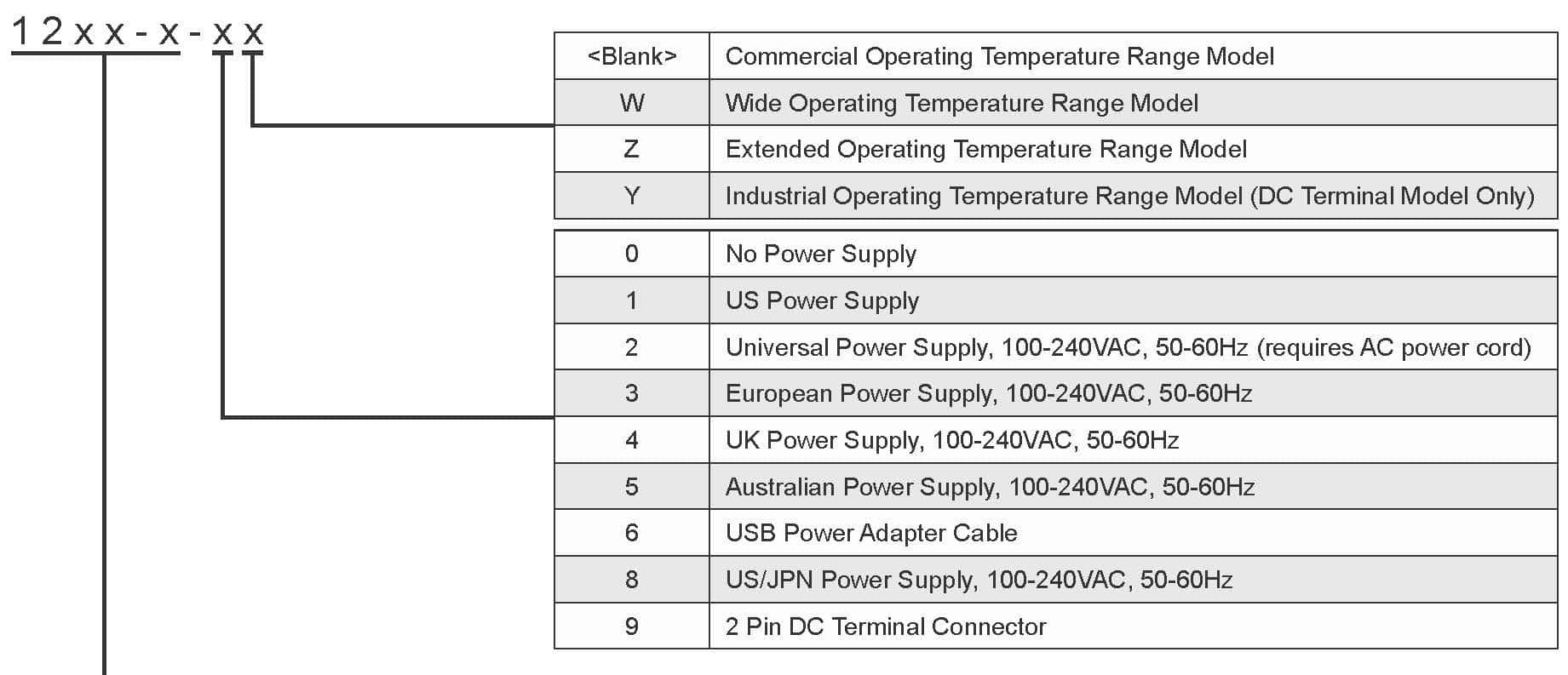

Step 1: Choose a Base Part Number (xxxx-x-pt)

Step 2: Choose your Power Option (xxxx-x-pt)

Step 3: Choose an Operating Temperature Option (xxxx-x-pt)

Accessories
