Managed Industrial 6 and 10 Port Gigabit Ethernet Switch

Features
Description
Examples
Specifications
Ordering
Documents

Features

Managed Industrial 6 and 10 port Gigabit Ethernet Switches with single or dual DC power
Two 10/100/1000 copper or Gigabit fiber uplink ports
Four 10/100/1000 copper user ports
ST, SC and LC fixed fiber ports or standard, CWDM or DWDM Gigabit SFP transceivers
Supports jumbo frames up to 10,240 bytes
Management via Web, Telnet, SSH, SNMPv1/v2c/v3 and serial interfaces
Easy to use Hierarchical Command Line Interface
SNMP management via Omnitron’s NetOutlook® management software, or third-party SNMP software
Supports IPv4 and IPv6
IEEE 802.1x, RADIUS, TACACS+ and ACL
Email Notification
Rapid and Multiple Spanning Tree Protocol
IEC 62439-2 Industrial Ring Media Redundancy
IEEE 802.1ax LAG and LACP; Active/Active and Active/Standby
Dual Device mode for operating as two separate switches
Directed Switch mode AKA Camera mode to prevent port flooding
Industrial (-40 to 75º C) operating temperature
TAA, BAA and NDAA compliant, and Made in the USA
Free 24/7/365 Technical Support

ADDITIONAL FEATURES

IPv4 Internet Group Management (IGMP) and IPv6 Multicast Listener Discovery (MLD) snooping
DHCP Relay Option 82, DHCPv6 and DHCPv6 Relay
IEEE 802.1ab Link Layer Discovery Protocol
Rate Limiting, Queue prioritization and Class of Service
IEEE 802.1Q VLAN tagging and IEEE 802.1ad Q-in-Q
Port Access Control for enhanced security
Static MAC configuration and blocking of unknown Unicast/Multicast addresses
Broadcast / Multicast / Unicast Storm Prevention
SNTP / NTP and time of day
Alarm contacts and sensors
Wall, Rack and DIN-rail mountable
Fan-less design

Description

The RuggedNet G/Mi is a ruggedized Industrial gigabit Ethernet switch that features fiber or copper uplink ports and four or eight 10/100/1000 RJ-45 copper user ports. The RuggedNet G/Mi enables industrial network distance extension with fiber or copper cabling.

The RuggedNet G/Mi is a standard Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

The RuggedNet G/Mi supports Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports.

Models with two fiber or two copper uplink ports support redundant uplinks, industrial ring Media Redundancy Protocol (MRP), Spanning Tree protocol and daisy-chain configurations for high availability industrial network applications.

Models with two fiber or two copper uplink ports also support Dual Device mode that enables the G/Mi to operate as two independent and isolated Ethernet switches. In Dual Device mode, the G/Mi provides separate and independent data traffic paths between the two uplink ports and four or eight user ports.

The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. IPv4 and IPv6 are supported on the switches. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email notification and alarm reporting is provided.

Models are available with fixed ST, SC, and LC fiber connectors or Small Form Pluggable (SFP) transceiver receptacles. Fiber ports support multimode or single-mode and dual fiber or single-fiber with distances up to 140km. SFP models support a variety of distances in standard, CWDM and DWDM wavelengths.

All models can be wall or rack mounted using a wall mount bracket and shelf or DIN-rail mounted using the included DIN-rail mounting clip. They are available with single or dual DC input power options.

An alarm relay is available to detect user configured events. The relay contact can be configured for normally open or normally closed operation. One alarm input is available for detecting external events such as door open or closed.

Examples

Dual Device Mode Application

This Dual Device feature is extremely useful when two isolated networks domains share a single network distribution location.

The example below depicts a scenario where the Quality Control (green) network and the Manufacturing (purple) network are sharing a single hub distribution location. Using the two uplinks and the Dual Switch mode facilitates using a single switch driving both the Quality Control and the Manufacturing devices while maintaining isolation between the networks.

Dual Media Converter Mode 2840 g mi

Daisy-Chain and Ring Topology Network Application

This example demonstrates the daisy chaining and ring capabilities of the RuggedNet. In this application each RuggedNet switch connects to its neighboring switches via its uplink ports eventually closing the ring. The RuggedNet switches are providing connectivity between the workstations and the router.

Using this network architecture combined with ring protection protocols such as Media Redundancy Protocol (MRP) or Rapid Spanning Tree Protocol (RSTP) facilitates a highly resilient network required in mission critical applications.

Industrial Manufacturing Application 2840 gmi

Specifications

Description	RuggedNet® G/Mi 10/100/1000BASE-T with Gigabit Fiber or 10/100/1000BASE-T Copper Uplinks Industrial Managed 6 and 10 Port Gigabit Ethernet Switch
Standard Compliances	IEEE 802.3, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1ax, IEEE 802.1w RSTP/MSTP RFC 5424, RFC 4541, RFC 2710, IEC 624339-2, SMTP, SNTP, RADIUS, TACACS+, IEEE 802.1
Regulatory Compliances	Safety: UL 62368-1, UL 60950-1, IEC 62368-1, IEC 60950-1, EN 62368-1, EN 60950-1, CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1, CE Mark, UKCA EMC: EN 55032/24 CE Emissions/Immunity, IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity EMI: CISPR 32, FCC 47 Part 15 Subpart B Class A EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (on UTP cabling) and 20 V/m (on STP cabling) IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: Signal: 10 V, IEC 61000-4-8 ( Magnetic Field), 30A/m, IEC 61000-4-11 (General Immunity in Industrial Environments) IP Rating: IP40 Protection ACT: TAA, BAA, NDAA
Environmental	REACH, RoHS and WEEE
Management	Pv4 and IPv6 address Web, Telnet, SSH, SNMPv1/v2c/v3 In-Band management via Ethernet port Out-of-band management via serial port
Frame Size	Up to 10,240 bytes
Port Types	Copper: 10/100/1000BASE-T (RJ-45) Fiber: 1000BASE-X (ST, SC, LC, SFP) 10/100/1000BASE-T SGMII (SFP) Serial: RJ-45
Cable Types	Copper: EIA/TIA 568A/B, Cat 5 UTP and higher Fiber: Multimode: 50/125, 62.5/125μm Single-mode: 9/125μm Serial: Category 3 and higher
DC Power Requirements	4 RJ-45 Ports: +12 to +57VDC; 0.68A @ 12VDC 0.17A @ 48VDC 2 Pin Terminal (isolated)	8 RJ-45 Ports: +12 to +57VDC; 0.75A @ 12VDC 0.19A @ 48VDC 2 Pin Terminal (isolated)
Alarm Contact (Output)	2 form C Relay for Normally Open and Normally Closed Operation 110VDC/125VAC Maximum Voltage 2A Maximum Current
Alarm Sensor (Input)	2.0ma @ 3.3VDC Closure Detection
Dimensions (W x D x H)	1.5” x 5.5” x 5.5” (38.1 mm x 139.7 mm x 139.7 mm)
Weight	4 RJ-45 Ports: 1.70 lb.; 772 grams	8 RJ-45 Ports: 1.77 lb.; 803 grams
Operating Temperature	-40 to 75°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	282,000
Warranty	5 year product warranty with 24/7/365 free Technical Support

Ordering

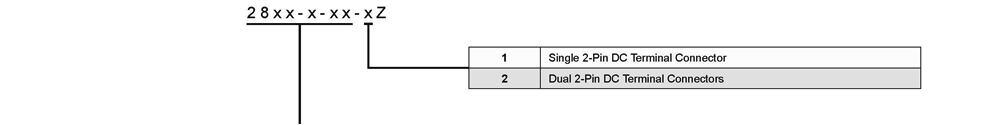

Step 1: Choose the Base Part Number (xxxx-x-xy-pZ)

RuggedNet G/Mi Models
Fiber Type	Distance	Connector Type					Tx/Rx Lambda (nm)	Min. Tx Power (dBm)	Max. Tx Power (dBm)	Min. Rx Power (dBm)	Max. Rx Power (dBm)	Min Atten (dB)	Link Budget (dB)
Fiber Type	Distance	ST	SC	LC	SFP	RJ-45	Tx/Rx Lambda (nm)	Min. Tx Power (dBm)	Max. Tx Power (dBm)	Min. Rx Power (dBm)	Max. Rx Power (dBm)	Min Atten (dB)	Link Budget (dB)
MM/DF	220/550m¹	2840-0-1y-pZ	2842-0-1y-pZ	2846-0-1y-pZ	-	-	850/850	-10	-4	-17	-3	-	7
MM/DF (x2)	220/550m¹	-	-	2846-0-2y-pZ	-	-	850/850	-10	-4	-17	-3	-	7
MM/DF	2km	-	2842-6-1y-pZ	-	-	-	1310/1310	-9.5	-3	-19.5	-3	-	10
SM/DF	12km	2841-1-1y-pZ	2843-1-1y-pZ	2847-1-1y-pZ	-	-	1310/1310	-9.5	-3	-19.5	-3	-	10
SM/DF (x2)	12km	-	-	2847-1-2y-pZ	-	-	1310/1310	-9.5	-3	-19.5	-3	-	10
SM/DF	34km	-	2843-2-1y-pZ	-	-	-	1310/1310	-5	0	-23	-3	3	18
SM/DF	80km	-	2843-3-1y-pZ	-	-	-	1550/1550	-5	0	-23	-3	3	18
SM/DF	110km	-	2843-4-1y-pZ	-	-	-	1550/1550	0	5	-24	-3	8	24
SM/DF	140km	-	2843-5-1y-pZ	-	-	-	1550/1550	2	5	-28	-8	13	30
MM/SF²	220/550m¹	-	2850-0-1y-pZ	-	-	-	1310/1550	-9	-3	-18	-3	-	9
MM/SF²	220/550m¹	-	2851-0-1y-pZ	-	-	-	1550/1310	-9	-3	-18	-3	-	9
SM/SF²	20km	-	2850-1-1y-pZ	-	-	-	1310/1550	-9.5	-3	-20	-3	-	10.5
SM/SF²	20km	-	2851-1-1y-pZ	-	-	-	1550/1310	-9.5	-3	-20	-3	-	10.5
SM/SF²	40km	-	2850-2-1y-pZ	-	-	-	1310/1550	-3	0	-20	-3	3	17
SM/SF²	40km	-	2851-2-1y-pZ	-	-	-	1550/1310	-3	0	-20	-3	3	17
SFP (x1)	-	-	-	-	2859-0-1y-pZ	-	-	-	-	-	-	-	-
SFP (x2)	-	-	-	-	2859-0-2y-pZ	-	-	-	-	-	-	-	-
RJ-45 (x2)	100m	-	-	-	-	2859-1-2y-pZ	-	-	-	-	-	-	-
¹ 62.5/125µm, 100/140µm multimode fiber up to 220m. 50/125µm multimode fiber up to 550m. ²When using single-fiber (SF) models, the Tx wavelength on one end has to match the Rx wavelength on the other. MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page.
