FlexPoint® 10T/2

10BASE-T Copper to 10BASE-2 Coax Media Converter

The FlexPoint 10T/2 support distances up to 100m using category 3 cable and higher. The FlexPoint 10T/2 detects and corrects wiring polarity reversals, and features a crossover switch that facilitates connection to a hub or a workstation. No manual configuration is required with the plug-and-play FlexPoint 10T/2. Connect the UTP and coax cables and the installation is complete.



Features


  • 10BASE-T copper to 10BASE-2 coax converter
  • Seamlessly connects 10BASE-2 devices to 10BASE-T hubs or workstations
  • Supports 50 ohm coax to a maximum distance of 185m and 30 stations
  • Features convenient, switch-selectable coax line termination to save cost and space
  • Features a UTP crossover switch and automatic polarity detection, correction and indication
  • Labeled status LEDs for quick and easy installation
  • Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint Powered Chassis
  • Commercial (0 to 50°C) and wide (-40 to 60°C) temperature ranges
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Completely software independent with no installation of drivers required
  • Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support




Description

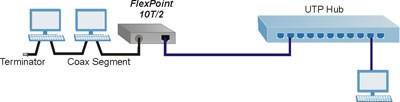

The FlexPoint 10T/2 is a Half-Duplex 10BASE-T UTP to 10BASE-2 coax media converter that facilitates the connection of a coax segment to a 10BASE-T hub or workstation.

No manual configuration is required with the plug-and-play FlexPoint 10T/2. Connect the UTP and coax cables and the installation is complete.

The FlexPoint 10T/2 support distances up to 100m using category 3 cable and higher. The FlexPoint 10T/2 detects and corrects wiring polarity reversals, and features a crossover switch that facilitates connection to a hub or a workstation.

The FlexPoint 10T/2 features a BNC connector supporting 50 ohm cabling with distances up to 185m. Per IEEE 802.3 standard, up to 30 workstations can be attached to the coax segment. A termination switch provides a convenient 50 ohm cable termination.

Descriptions of the LED indicators are provided on the label for easy in-the-field installation and maintenance. The LEDs report the availability of power, port activity and link status, polarity reversal detection and correction, collision and jabbers.

FlexPoint modules can be mounted utilizing optional wall-mounting hardware or with DIN-rail mounting brackets. They can also be rack-mounted in a 5-Module shelf or in a high-density 14-Module, power-redundant Powered Chassis.

FlexPoint modules installed in the 5-Module shelf or used as standalone devices can be powered by an external AC to DC power adapter, or through the 5VDC chassis connector. Standalone modules can also be powered by attaching an external DC power supply (18-60VDC). When used in the 14-Module power-redundant Powered Chassis with any combination of AC and DC power supplies, the installed modules are powered via the 5VDC chassis connector.

The wide variety of FlexPoint mounting and power options provide flexible upgrade paths as network requirements change and grow.

FlexPoint unmanaged media converters are easy to use and provide dependable fiber connectivity in Enterprise and Government networks around the world.





Examples


In the application below, a FlexPoint 10T/2 media converter is used to connect a Transportation Fare Validator that has an RJ-45 UTP port to the existing coax infrastructure. The FlexPoint 10T/2 converts the 10BASE-T RJ-45 connection from the Fare Validator to 10BASE-2 coax. At the head end, the FlexPoint 10T/2 installed in a high-density 14-Module chassis converts the coax back to UTP and provides connectivity to the Network Switch.

Fare Validator App

The FlexPoint 10T/2 converters can be installed as a standalone device up to 100m away from the Fare Validator, mounted on a 5-Module shelf (1U), or installed in a 14-Module powered chassis (2U) as seen above.



In this second application, FlexPoint 10T/2 media converters can be used to connect PLC devices in industrial and manufacturing environments. The FlexPoint 10T/2 are available in commercial (0 to 50°C) and wide (-40 to 60°C) temperature ranges to accommodate various installation environments.

PLC App







Specifications


Description
 FlexPoint 10T/2
10BASE-T Copper to 10BASE-2 Coax Media Converter
Standard Compliances IEEE 802.3
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA, NDAA

Environmental RoHS, WEEE, REACH
Port Types
Coax:
Copper:
10BASE-2 (BNC)
10BASE-T (RJ-45)
Cable Types
Coax:
Copper:
50 ohm, RG-58/U, RG-58C/U or equivalent
EIA/TIA 568A/B, Cat 3 UTP and higher
AC Power Requirements
AC Adapter:

100 - 240VAC/50 - 60Hz
0.09A @ 120VAC (typical)
DC Power Requirements

Voltage Range:
Nominal Voltage:
Nominal Power:
Barrel Connector
8.0 to 15.0VDC
9VDC
0.47A @ 9VDC
Molex Connector
4.75 to 5.25VDC
5VDC
0.84A @ 5VDC
Dimensions
W x D x H
3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight
Without AC Adapter:
6 oz. (170.1 grams)
Temperature
Commercial:
Wide:
Storage:
   0 to 50°C
-40 to 60°C
-40 to 80° C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
Without AC Adapter (-0):
With AC Adapter (-1):
With AC Adapter (-2):
1,200,000
250,000
100,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support




Ordering


Step 1: Choose the Base Part Number (xxxx-pt)

Model NumberDescription
4320-pt
10BASE-T to 10BASE-2 Media Converter, 100 meters (UTP) to 185 meters (Coax
Contact Omnitron for other operational temperature ranges and RoHS (5/6) compliant models

Step 2: Choose your Power Option (xxxx-pt)

-0 = Barrel Connector, No AC/DC Power Adapter
-1 = Barrel Connector and US AC/DC Power Adapter, 100-240 VAC, 50-60Hz
-2 = Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)

Step 3: Choose an Operating Temperature Option (xxxx-pt)

<leave blank> = Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)





  -1 = Barrel Connector and US AC/DC Power Adapter, 100-240 VAC, 50-60Hz

Wall Wort PS flexpoint

 -2 = Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)

Universal PS flexpoint





Accessories

Model NumberDescriptionModel NumberDescription
4385 FlexPoint 14-Module Chassis with two 48VDC Power Supplies 4395 FlexPoint 14-Module Chassis with two AC Power Supplies
4386 FlexPoint 14-Module Chassis with one 48VDC Power Supply 4396 FlexPoint 14-Module Chassis with one AC Power Supply
4389 Spare 48VDC Power Supply 4399 Spare AC Power Supply
4392 FlexPoint 5-Module Rack-Mount Shelf 4380 FlexPoint Wall-Mounting Hardware Kit
4384
FlexPoint DC to DC Power Adapter
Input: 18-60VDC Output: 5VDC
4384-W
FlexPoint DC to DC Power Adapter
Input: 18-60VDC
Output: 5VDC Wide Temperature Model (-40 to 60°C)
8250 FlexPoint DIN-Rail Mounting Kit 4381 Wall-Mounting Hardware Kit for DC to DC Power Adapter (4384)
