iConverter® XM5 Aggregation Demarcation Device SFP not included
iConverter® XM5 Aggregation Demarcation Device

Carrier Ethernet 2.0 Certified 10G Aggregation NID

The iConverter® XM5 Aggregation Demarcation Device provides aggregation and demarcation for Carrier Ethernet 2.0 services. The XM5 Aggregation Demarcation Device supports the latest carrier-class Ethernet Service OAM, testing and protection standards.



Features


  • MEF Carrier Ethernet 2.0 Certified 10 Gigabit and 1000Mbps Ethernet Aggregation NID
  • Integrated IPv4, IPv6, SNMPv1/v2c/v3, SSH, Telnet and IP-less 802.3ah OAM management
  • SNMP management via NetOutlook® Network Management software
  • Port configuration:
    • 2 SFP/SFP+ or XFP Ports
    • 12 100/1000 SFP Ports
    • 2 RJ-45 10/100/1000 Ports
  • Supports dual fiber and single-fiber SFP/SFP+/XFP transceivers for standard, CWDM or DWDM wavelengths
  • RJ-45 port supports 10/100/1000 and Half/Full-Duplex auto-negotiation and MDI/MDIX auto-crossover
  • 10,056 byte Jumbo frames
  • Advanced traffic management with service mapping, traffic policing and shaping with Hierarchical Rate Limiting
  • IEEE 802.1ag Connectivity Fault Management
  • ITU-T Y.1731 End-to-End Performance Monitoring
  • RFC 5357 TWAMP responder and initiator
  • Zero-Touch Provisioning
  • ITU-T Y.1564 Ethernet Service Activation Testing
  • IETF RFC 2544 Ethernet Service Activation Testing
  • ITU-T G.8262 Sync-E and IEEE 1588v2 Timing
  • ITU-T G.8031 and G.8032v2 Ethernet Protection Switching
  • IEEE 802.1ax/802.3ad LAG with LACP
  • Available with redundant DC terminal power inputs
  • TAA, BAA and NDAA Compliant, and Made in the USA
  • Commercial (0 to 50ºC), wide (-40º to 60ºC) and extended (-40º to 75º C) temperature ranges




Description


The iConverter® XM5 Aggregation Demarcation Device provides aggregation and demarcation for Carrier Ethernet 2.0 services. The XM5 Aggregation Demarcation Device supports the latest carrier-class Ethernet Service OAM, testing and protection standards. These advanced capabilities enable rapid service deployments, Service Level Agreement (SLA) assurances, comprehensive fault management and service protection to reduce operating costs and improve customer satisfaction.

The XM5 Aggregation Demarcation Device features two 10G SFP/SFP+ or XFP ports, twelve Gigabit/Fast Ethernet SFP ports, and two 10/100/1000 RJ-45 ports for aggregation of wholesale Ethernet, 4G/LTE mobile backhaul, business and cloud services.

The XM5 supports MEF-certified User-to-Network Interface (UNI) functions including Class of Service (CoS) management, granular rate-limiting, and 802.1ad Provider Bridge VLAN stacking (Q-in-Q) for service multiplexing of multiple E-Line, E-LAN and E-Tree services. The XM5 provides flexible per-flow service mapping, traffic policing and shaping. CIR/EIR “two rates, three colors” ingress port policing provides the granular bandwidth optimization required for CE 2.0 services such as Business Ethernet Services and Mobile Backhaul. The XM5 also provides advanced classification and filtering of subscriber traffic as an EVC or CoS flow based on Layer 1, 2, 3 or 4 identifiers.

The XM5 supports carrier-class Ethernet Service OAM standards. IEEE 802.1ag Connectivity Fault Management (CFM) proactively monitors service availability and provides tools for rapid fault isolation. ITU-T Y.1731 Performance Monitoring provides the ability to monitor key SLA parameters including frame delay, frame delay variation and frame loss. These OAM features provide proactive fault detection and rapid isolation of potential service problems, enabling SLA assurance while reducing Operational costs (OPEX).

The XM5 supports ITU-T Y.1564 and RFC 2544 service testing to easily verify the configuration and performance of Ethernet services prior to customer hand off. RFC 2544 provides per flow testing of Key Performance Indicators (KPI), such as throughput, latency, jitter and frame loss up to full wire speed. Y.1564 is a comprehensive Carrier Ethernet testing standard that tests all data flows and service attributes, including multi-flow Information Rate and Traffic Policing.

The XM5 supports ITU-T G.8031 Ethernet Linear Protection Switching and G.8032v2 Ethernet Ring Protection Switching with Connectivity Check Messages (CCM) at 3.3ms rate for sub-50ms protection switching. G.8032v2 includes multi-ring protection and sub-ring support.

Zero-Touch Provisioning (ZTP) allows providers to achieve efficiencies in service activation that accelerate turn up and reduce the need for on-site technicians. ZTP allows service provisioning to be centralized, standardized and remotely managed.

The integrated management eliminates the cost and space required for external management hardware. The integrated management provides comprehensive remote configuration and performance monitoring.

The XM5 supports IPv4 and IPv6 addressing, IP-Less protocol using the IEEE 802.3ah OAM channel or using SNMPv1/v2c/v3, SSH, Telnet or serial console port.

The IP address is user-defined or can be resolved through DHCP. Telnet and serial console (CLI) management interfaces are also supported, and utilize an easy-to-use, menu-driven interface. The CLI interface provides local configuration access.

SNMP management is available via Omnitron’s NetOutlook® SNMP Network Management Software with an intuitive Graphical User Interface, or third party SNMP software.

The XM5 is available with a single internal AC power supply or single or dual DC power terminals. Featuring high port density in a compact 19” 1U rack mount chassis, the XM5 Aggregation Demarcation Device can be deployed indoors or outdoors in an all-weather enclosure. All data ports, timing I/O, and power inputs are front-loading for easy access.

The XM5 can be deployed as a node on a 10G ring with Gigabit aggregation ports, or as a demarcation NID on a 10G access link with aggregation UNI ports for multiple tenants or cell towers.





Examples


Metro Ethernet Ring

In this application example, a iConverter XM5 Aggregation Demarcation Device is deployed as an Carrier Ethernet aggregation node on a 10G fiber ring. The XM5 Aggregation Demarcation Device supports G.8032v2 Ethernet Ring Protection Switching for service protection with sub-50ms failover.

The XM5 Aggregation Demarcation Device provides twelve fiber access links (and two 10/100/1000 RJ-45 ports) for multiple Small Cell, 4G/LTE and business services.

iConverter GM4 PoE NIDs and GM4 NIDs are deployed at the end of the access links for CE 2.0 demarcation.

The XM5 Aggregation Demarcation Devices provide comprehensive support of Carrier Ethernet performance monitoring, fault management, timing and protection standards to enable rapid service deployments and service assurance.



NID XM5 Application example





Advanced Features


ManagementService OAM and Testing
IPv4, IPv6, Telnet, SNMPv1, SNMPv2c, SNMPv3, SSH, Serial Console IEEE 802.3ah Link OAM with Dying Gasp
SNMP management via NetOutlook Network Management software

IEEE 802.1ag Connectivity Fault Management with

8 Maintenance Domain levels and 256 Maintenance Associations

MEF 30 and 31 Service OAM Fault Management MIBs IEEE 802.1ag Maintenance Intermediate Points for fault isolation
Link Layer Discovery Protocol (LLDP) ITU-T-Y.1731 Performance Monitoring with threshold monitoring and crossing alerts
Syslog

Advanced classification and filtering of Layer 1, 2, 3 or 4 subscriber

traffic as an EVC or CoS flow

Alarm Relay Contacts RFC 5357 TWAMP IP SLA Performance Monitoring
Traffic Management

IETF RFC 2544 (built-in Test-head) with wire-speed, per flow testing of

throughput, latency, jitter and loss

IEEE 802.1Q VLAN Tagging

ITU-T-Y.1564 Service Testing (built-in Test-head) with multi-flow testing of

information rate, latency, jitter and frame loss

IEEE 802.1ad Q-in-Q VLAN Tagging Per port and per flow loopback with MAC (Layer 2) swap or IP (Layer 3) swap
Service Multiplexing of up to 256 EVCs Third party in-band loopback support
User-configurable Ethertype Zero-Touch Provisioning (DHCP/TFTP)
All ports configurable as UNI or NNI

Portal integration with Cyan Blue Planet, Ocular IP, Orion Solarwinds

and Web EMS

Ingress and Egress traffic management Built-in UTP cable tester for troubleshooting to the Customer Equipment
Hierarchical rate limiting with two-level color aware policing Protection and Redundancy
CIR/EIR color aware “two rates, three colors” bandwidth profiles Port Redundancy (Primary and Backup Link)
Port Mirroring IEEE 802.1ax/802.3ad LAG with LACP (1:1 and 1+1)
IEEE 802.1p CoS Priority ITU-T-G.8031 Ethernet Linear Protection with sub-50ms failover

 per Port, VLAN ID, PCP, IPv4/IPv6 (TOS/DiffServe) Priority,

 MAC address, IP address, TCP Port or L2CP

ITU-T-G.8032 Ethernet Ring Protection with sub-50ms failover
L2CP Policy Management IEEE 802.1w Rapid Spanning Tree Protocol
L2PT Tunneling to encapsulate STP, VTP, PVST and CDP protocols Security and Authentication
RFC 4541 IGMP Snooping TACACS+, RADIUS, 802.1x
DHCP Relay Option 82 Access Control Lists
Timing and Synchronization
IEEE 1588v2 Boundary Clock, Slave Clock and Transparent Clock
ITU-T G.8262 Synchronous Ethernet
10 MHz, 1 PPS Clock I/O
Network Time Protocol (NTP)

For 10G applications with the same advanced features, see the iConverter XM5 NID.





Specifications


Description
iConverter XM5
10G Aggregation Demarcation Device
Standard Compliances

IEEE 802.1Q, 802.1ad, 802.1p, 802.3, 802.3ah, 802.1ag, 1588v2

RFC 2819 (RMON), 2863 (IF-MIB), 2131 (DHCP), 2544

ITU-T G.8031, G.8032, G.8262, Y.1731, Y.1564

MEF Carrier Ethernet 2.0 Certified

MEF 6.2, 9, 10.2, 14, 21, 26.1, 30, 31, 33

Regulatory Compliances UL, CE, FCC Class A, NEBS Level 3, UKCA
Environmental
RoHS, WEEE, REACH, TAA, BAA, NDAA
 Management IPv4, IPv6, Telnet, SNMPv1, SNMPv2c, SNMPv3, SSH, Serial Console
Frame Size
Up to 10,056 bytes
Port Types
Copper:
Fiber:


Serial:
Management:
10/100/1000BASE-T (RJ-45)
100BASE-X (SFP)
1000BASE-X (SFP)
10GBASE-R (SFP+, XFP)
RS232 (RJ-45)
10/100/1000BASE-T (RJ-45)
Cable Types
Copper:
Fiber:

Serial:
Management:
 EIA/TIA 568A/B, Cat 5 and higher
Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
EIA/TIA 568A/B, Cat 3 and higher
EIA/TIA 568A/B, Cat 5 and higher
AC Power Requirements 80 - 264VAC/50-60Hz 0.8A @ 110VAC IEC 320 C14
DC Power Requirements +/- 20 to 60VDC 1.2A @ 48VDC (56W Max) 3-Pin Terminal (isolated)
Temperature
Commercial:
Wide:
Extended:
Storage:
    0 to 50° C
 -40 to 60° C
 -40 to 75° C
 -40 to 80° C

Dimensions

W x D x H

 17.15” x 9.0” x 1.70” (435.61 mm x 228.6 mm x 43.18 mm)
Weight

1 power supply:

2 power supplies:

7.5 lbs (3.41 kg)

9.0 lbs (4.1 kg)

Humidity
5% to 95% (non-condensing)
Altitude
-100m to 4,000m (operational)
Warranty
3 year warranty with 24/7/365 free Technical Support




Ordering


Model NumberDescription
 9620-C2-ppt
 XM5-Aggr with 2 SFP/SFP+ Ports, 12 100/1000BASE-X SFP Ports and 2 RJ-45 10/100/1000BASE-T Ports
 9621-C2-ppt
 XM5-Aggr with 2 XFP Ports, 12 100/1000BASE-X SFP Ports and 2 RJ-45 10/100/1000BASE-T Ports
 9624-C2-ppt
 XM5-Aggr with 2 SFP/SFP+ Ports, 12 100/1000BASE-X SFP Ports, 2 RJ-45 10/100/1000BASE-T Ports and 1588 Boundary/Slave Clock
 9625-C2-ppt
 XM5-Aggr with 2 XFP Ports, 12 100/1000BASE-X SFP Ports, 2 RJ-45 10/100/1000BASE-T Ports and 1588 Boundary/Slave Clock
 9626-C2-ppt
 XM5-Aggr with 2 SFP/SFP+ Ports, 12 100/1000BASE-X SFP Ports, 2 RJ-45 10/100/1000BASE-T Ports and 1588 Boundary/Slave Clock and Alarm Relay Contact
 9627-C2-ppt
 XM5-Aggr with 2 XFP Ports, 12 100/1000BASE-X SFP Ports, 2 RJ-45 10/100/1000BASE-T Ports and 1588 Boundary/Slave Clock and Alarm Relay Contact
 9630-C2-ppt
 XM5-Aggr with 2 SFP/SFP+ Ports, 12 100/1000BASE-X SFP Ports, 2 RJ-45 10/100/1000BASE-T Ports and 1588 Boundary/Slave Clock, Alarm Relay Contact and 1588 Clock I/O Connector
 9631-C2-ppt
 XM5-Aggr with 2 XFP Ports, 12 100/1000BASE-X SFP Ports, 2 RJ-45 10/100/1000BASE-T Ports and 1588 Boundary/Slave Clock, Alarm Relay Contact and 1588 Clock I/O Connector
  9632-C2-ppt
 XM5-Aggr with 2 SFP/SFP+ Ports, 12 100/1000BASE-X SFP Ports, 2 RJ-45 10/100/1000BASE-T Ports and 1588 Boundary/Slave Clock and G.8262 SyncE
 9633-C2-ppt
 XM5-Aggr with 2 XFP Ports, 12 100/1000BASE-X SFP Ports, 2 RJ-45 10/100/1000BASE-T Ports and 1588 Boundary/Slave Clock and G.8262 SyncE
 9634-C2-ppt
 XM5-Aggr with 2 SFP/SFP+ Ports, 12 100/1000BASE-X SFP Ports, 2 RJ-45 10/100/1000BASE-T Ports and 1588 Boundary/Slave Clock, Alarm Relay Contact and G.8262 SyncE
 9635-C2-ppt
 XM5-Aggr with 2 XFP Ports, 12 100/1000BASE-X SFP Ports, 2 RJ-45 10/100/1000BASE-T Ports and 1588 Boundary/Slave Clock, Alarm Relay Contact and G.8262 SyncE
 9638-C2-ppt
 XM5-Aggr with 2 SFP/SFP+ Ports, 12 100/1000BASE-X SFP Ports, 2 RJ-45 10/100/1000BASE-T Ports and 1588 Boundary/Slave Clock, Alarm Relay Contact, 1588 Clock I/O Connector and G.8262 SyncE
 9639-C2-ppt
 XM5-Aggr with 2 XFP Ports, 12 100/1000BASE-X SFP Ports, 2 RJ-45 10/100/1000BASE-T Ports and 1588 Boundary/Slave Clock, Alarm Relay Contact, 1588 Clock I/O Connector and G.8262 SyncE

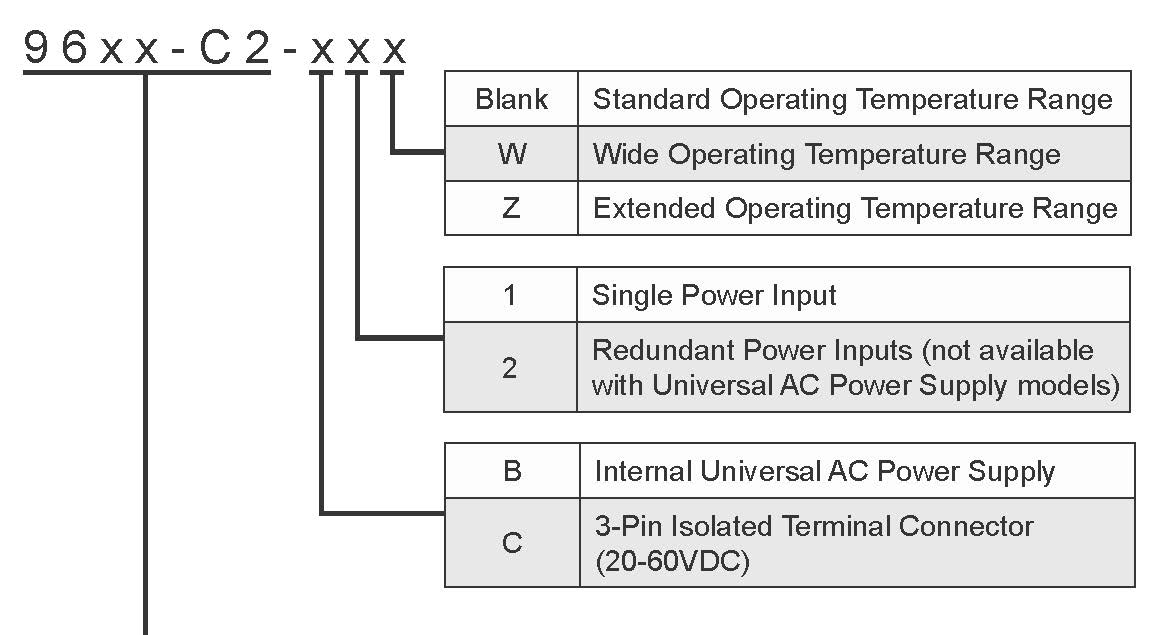

Base Model Number:   96xx-C2-ppt
Select the model from ordering table above.
  Add power option (pp) and operating temperature range (t) to the model type selected.
Power Options (pp):

 B1 =  Single IEC 320 C14 Connector and Internal AC Power Supply,

80 - 264 VAC, 50-60Hz, with US power cord

 C2 =  Dual Direct DC input, +/- 20VDC to 60VDC, 3 pin terminal connector,

no AC/DC power adapter

 C1 =  Single Direct DC input, +/- 20VDC to 60VDC, 3 pin terminal connector, no AC/DC power adapter

Operating Temperature Options (t):
<leave blank> = Commercial temperature (0 to 50°C) W = Wide temperature (-40 to 60°C)
Z =  Extended temperature (-40 to 75°C)

All models support IEEE 1588 Transparent clock mode.

Contact Omnitron for other options. Order the appropriate Gigabit and Fast Ethernet SFPs separately. Visit the Omnitron Optical Transceivers web page.
