The RuggedNet GHPoEBT/Mi replaces the GHPoE/Mi and is recommended for all new designs.
Additional Features

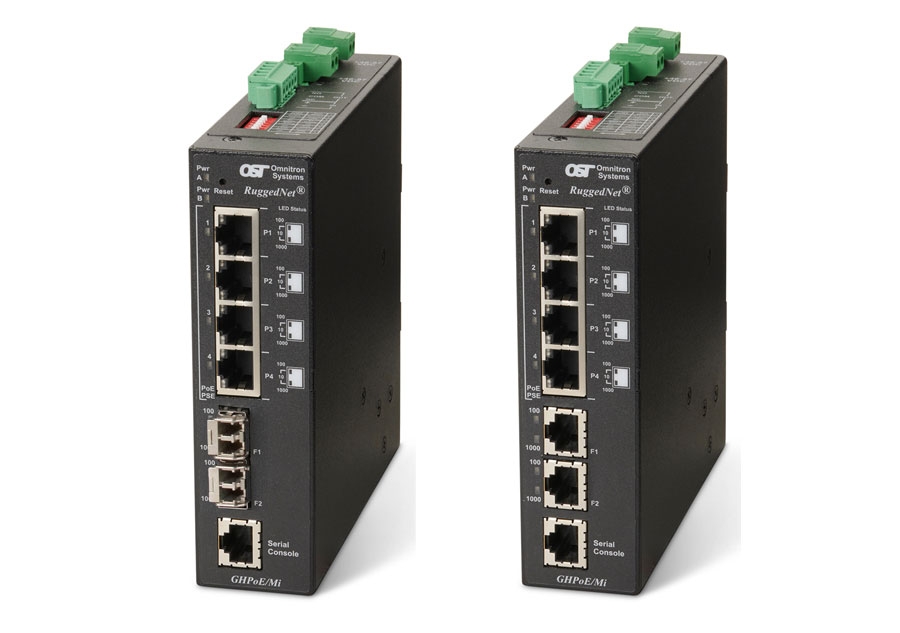

The RuggedNet GHPoEBT/Mi are industrial ruggedized and temperature-hardened managed Layer 2 Ethernet switches that feature fiber or copper uplink ports and four 10/100/1000 RJ-45 copper Power Sourcing Power-over-Ethernet user ports.
The GHPoEBT/Mi is an IEEE 802.3bt switch featuring 60W and 100W per user port models.

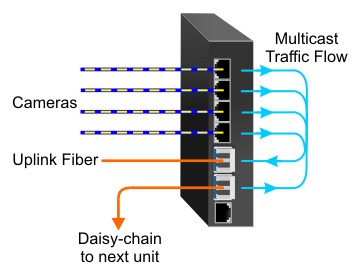

All models support Directed Switch mode, which directs multicast traffic, such as video, to the appropriate uplink port, preventing multicast traffic from flooding other network ports.
Models with two fiber or two copper uplink ports support redundant uplinks, industrial ring Media Redundancy Protocol (MRP), Rapid Spanning Tree Protocol (RSTP) and daisy-chain configurations for high availability industrial network applications.
Models with two fiber or two copper uplink ports also support Dual Device mode that enables the switches to operate as two independent and isolated Ethernet switches.

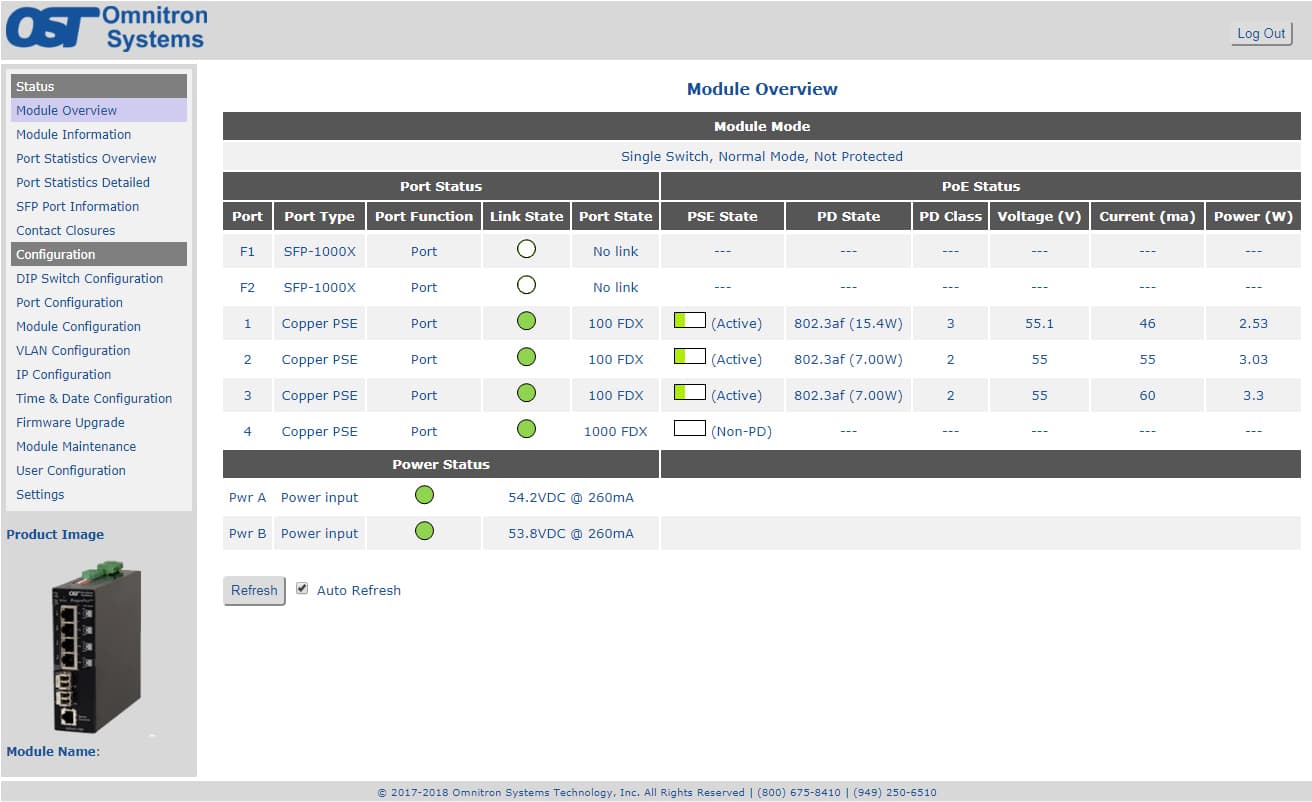

The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. IPv4 and IPv6 are supported on the switches. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email notification and alarm reporting is provided.
The RuggedNet PoE switches are available with fixed fiber ST, SC, and LC connectors or Small Form Pluggable (SFP) transceiver ports. Fiber ports support multimode or single-mode and dual fiber or single-fiber with distances up to 140km. SFP models support a variety of distances in standard, CWDM and DWDM wavelengths.
The switches feature a Remote PoE Power Reset function that enables the user to remotely power-cycle and reset each PD. They also feature a configurable Heartbeat Reset function that automatically pings the attached PDs and automatically power cycles and resets the PDs when detecting a heartbeat loss. These functions save time and expense by eliminating the need to dispatch manpower to remote network sites.
An alarm relay is available to detect user configured events. The relay contact can be configured for normally open or normally closed operation. One alarm input is available for detecting external events such as door open or closed.
Dual Device Mode Application

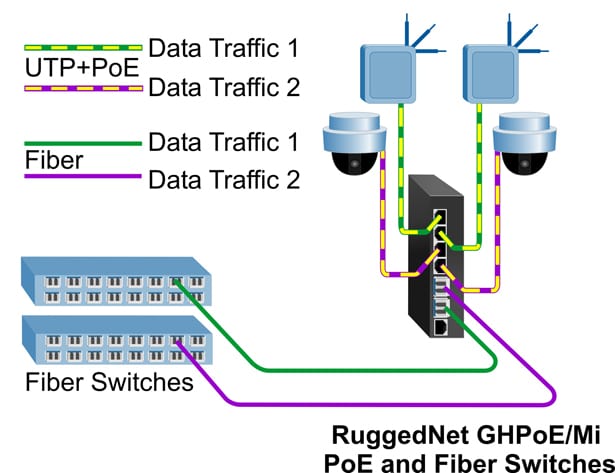

This Dual Device feature is extremely useful when two isolated networks domains share a single network distribution location.

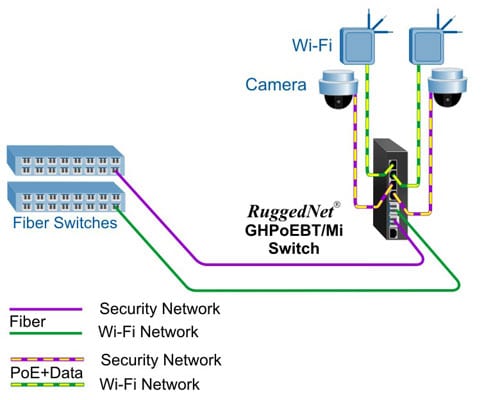

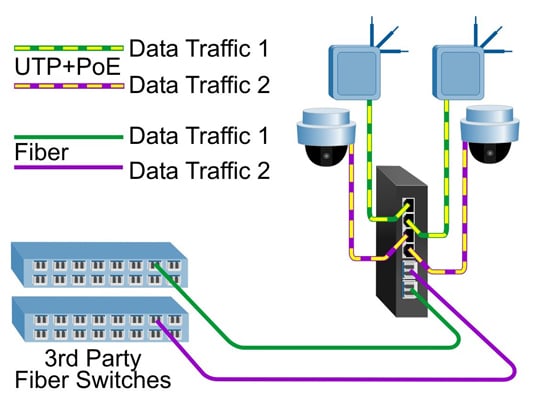

The example below depicts a scenario where a surveillance security (purple) network and a Wi-Fi (green) network are sharing a single hub distribution location. Using the two uplinks and the Dual Switch mode facilitates using a single PoE switch driving both the Cameras and the Wi-Fi Access Points while maintaining isolation between the networks.

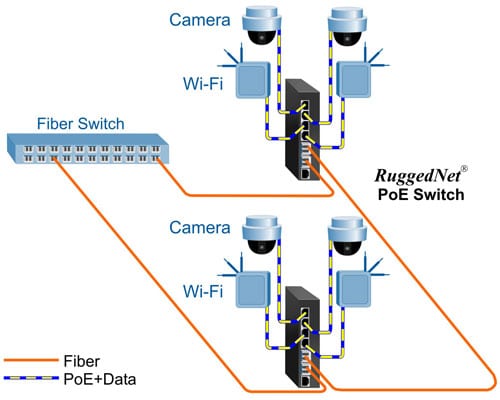

Daisy-Chain and Ring Topology Network Application

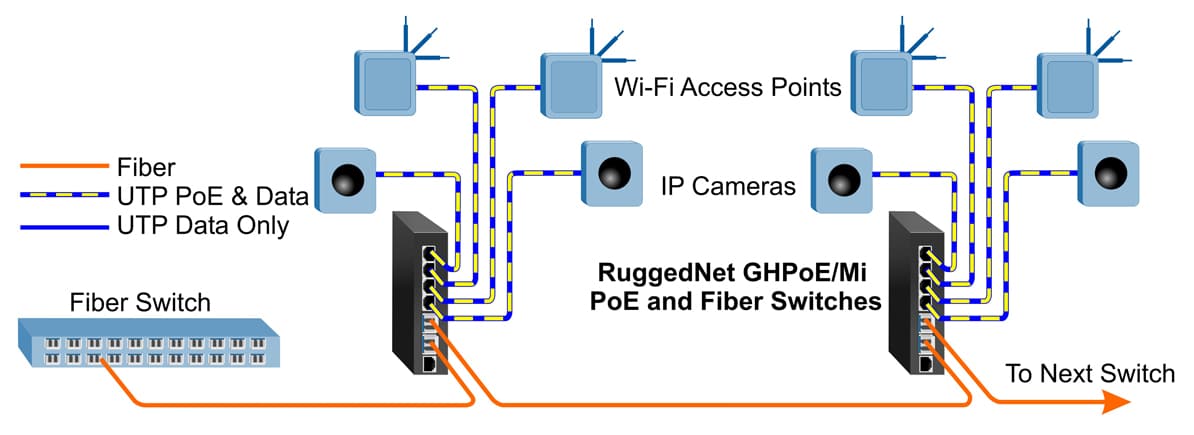

This example demonstrates the daisy chaining and ring capabilities of the OmniConverter. In this application each OmniConverter switch connects to its neighboring switches via its uplink ports eventually closing the ring.
Using this network architecture combined with ring protection protocols such as Media Redundancy Protocol (MRP) or Rapid Spanning Tree Protocol (RSTP) facilitates a highly resilient network required in mission critical applications.
Description | RuggedNet® GHPoEBT/Mi (60/100W BT) 10/100/1000BASE-T with Gigabit Fiber or Copper Uplinks Ruggedized Managed IEEE 802.3bt PoE Ethernet Switch |
||
---|---|---|---|
Standard Compliances |
IEEE 802.3, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1ax, IEEE 802.1w RSTP/MSTP, RFC 5424, RFC 4541, RFC 2710, IEC 624339-2, SMTP, SNTP, RADIUS, TACACS+, IEEE 802.1x, IEEE 802.3af (15.40 watts max), IEEE 802.3at (30 watts max), IEEE 802.3bt (60 and 100 watts max) |
||
Regulatory Compliances |
Safety: UL 62368-1, UL 60950-1, IEC 62368-1, IEC 60950-1, EN 62368-1, EN 60950-1, CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1, CE Mark, UKCA EMC: EN 55032/24 CE Emissions/Immunity, IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity EMI: CISPR 32, FCC 47 Part 15 Subpart B Class A EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (on UTP cabling) and 20 V/m (on STP cabling) IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: Signal: 10 V, IEC 61000-4-8 ( Magnetic Field), 30A/m, IEC 61000-4-11 (General Immunity in Industrial Environments) IP Rating: IP40 Protection ACT: TAA, BAA, NDAA |
||
Environmental | REACH, RoHS and WEEE | ||
PoE Modes | IEEE Alternate A (Alt A) 4-Pair |
||
Management |
IPv4 and IPv6 address Web, Telnet, SSH, SNMPv1/v2c/v3 In-Band management via Ethernet port Out-of-band management via serial port |
||
Frame Size | Up to 10,240 bytes | ||
Port Types |
Copper: 10/100/1000BASE-T (RJ-45)
Fiber: 1000BASE-X (ST, SC, LC, SFP)
10/100/1000BASE-T SGMII SFP Serial: RJ-45 |
||
Cable Types |
Copper: EIA/TIA 568A/B, Cat 5 UTP and higher
Fiber: Multimode: 50/125, 62.5/125μm
Single-mode: 9/125μm Serial: Category 3 and higher |
||
DC Power Requirements | 60W BT Models: +46 to +57VDC; 4.46A @ 56VDC 2 Pin Terminal (isolated) |
100W BT Models: +46 to +57VDC; 7.31A @ 56VDC 2 Pin Terminal (isolated) |
|
Alarm Contact (Output) | 2 form C Relays for Normally Open and Normally Closed Operation 110VDC/125VAC Maximum Voltage 2A Maximum Current
|
||
Alarm Sensor (Input) | 2.0ma @ 3.3VDC Closure Detection | ||
Dimensions (W x D x H) |
1.5” x 5.5” x 5.5” (38.1 mm x 139.7 mm x 139.7 mm) | ||
Weight | 1.70 lbs.; 772 grams | ||
Operating Temperature | Extended: -40 to 75°C Storage: -40 to 80°C |
||
Humidity | 5% to 95% (non-condensing) | ||
Altitude | -100m to 4,000m (operational) | ||
MTBF (hrs) | 262,000 | ||
Warranty | 5 year product warranty with 24/7/365 free Technical Support |
Description |
IEEE 802.3af 15W PoE |
IEEE 802.3at 30W PoE+ |
IEEE 802.3.bt 60W PoE (Type 3) |
IEEE 802.3bt 100W PoE (Type 4) |
---|---|---|---|---|
Power Supply Voltage Range | 46.0 to 57.0 VDC | 51.0 to 57.0 VDC | 51.0 to 57.0 VDC | 53.0 to 57.0 VDC |
Voltage Range at PSE port Output | 44.0 to 56.0 VDC | 50.0 to 56.0 VDC | 50.0 to 56.0 VDC | 52.0 to 56.0 VDC |
Maximum Power from PoE/PSE port | 15.4 watts | 30 watts | 60 watts | 100 watts |
Minimum Voltage at PoE/PD port input* | 37.0 VDC | 42.5 VDC | 42.5 VDC | 41.1 VDC |
Minimum Power at PoE/PD port* | 12.95 watts | 25.5 watts | 51 watts | 71 watts |
* at 100 meters using Cat5 |
RuggedNet GHPoEBT/Mi IEEE 802.3bt 60W Models | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Fiber Type | Distance | Connector Type | Tx/Rx Lambda (nm) | Min. Tx Power (dBm) | Max. Tx Power (dBm) | Min. Rx Power (dBm) | Max. Rx Power (dBm) | Min Atten (dB) | Link Budget (dB) | ||||
ST | SC | LC | SFP | RJ-45 | |||||||||
MM/DF | 220/550m1 | 3300B-0-14-pZ | 3302B-0-14-pZ | 3306B-0-14-pZ | - | - | 850/850 | -10 | -4 | -17 | -3 | - | 7 |
MM/DF (x2) | 220/550m1 | - | - | 3306B-0-24-pZ | - | - | 850/850 | -10 | -4 | -17 | -3 | - | 7 |
MM/DF | 2km | - | 3302B-6-14-pZ | - | - | - | 1310/1310 | -9.5 | -3 | -19.5 | -3 | - | 10 |
SM/DF | 12km | 3301B-1-14-pZ | 3303B-1-14-pZ | 3307B-1-14-pZ | - | - | 1310/1310 | -9.5 | -3 | -19.5 | -3 | - | 10 |
SM/DF (x2) | 12km | - | - | 3307B-1-24-pZ | - | - | 1310/1310 | -9.5 | -3 | -19.5 | -3 | - | 10 |
SM/DF | 34km | - | 3303B-2-14-pZ | - | - | - | 1310/1310 | -5 | 0 | -23 | -3 | 3 | 18 |
SM/DF | 80km | - | 3303B-3-14-pZ | - | - | - | 1550/1550 | -5 | 0 | -23 | -3 | 3 | 18 |
SM/DF | 110km | - | 3303B-4-14-pZ | - | - | - | 1550/1550 | 0 | 5 | -24 | -3 | 8 | 24 |
SM/DF | 140km | - | 3303B-5-14-pZ | - | - | - | 1550/1550 | 2 | 5 | -28 | -8 | 13 | 30 |
MM/SF2 | 220/550m1 | - | 3310B-0-14-pZ | - | - | - | 1310/1550 | -9 | -3 | -18 | -3 | - | 9 |
MM/SF2 | 220/550m1 | - | 3311B-0-14-pZ | - | - | - | 1550/1310 | -9 | -3 | -18 | -3 | - | 9 |
SM/SF2 | 20km |
- | 3310B-1-14-pZ | - | - | - | 1310/1550 | -9.5 | -3 | -20 | -3 | - | 10.5 |
SM/SF2 | 20km |
- | 3311B-1-14-pZ | - | - | - | 1550/1310 | -9.5 | -3 | -20 | -3 | - | 10.5 |
SM/SF2 | 40km |
- | 3310B-2-14-pZ | - | - | - | 1310/1550 | -3 | 0 | -20 | -3 | 3 | 17 |
SM/SF2 | 40km |
- | 3311B-2-14-pZ | - | - | - | 1550/1310 | -3 | 0 | -20 | -3 | 3 | 17 |
SFP (x1) | - | - | - | - | 3319B-0-14-pZ | - | - | - | - | - | - | - | - |
SFP (x2) | - | - | - | - | 3319B-0-24-pZ | - | - | - | - | - | - | - | - |
RJ-45 (x2) | 100m | - | - | - | - | 3319B-1-24-pZ | - | - | - | - | - | - | - |
1 62.5/125µm, 100/140µm multimode fiber up to 220m. 50/125µm multimode fiber up to 550m. 2 When using single-fiber (SF) models, the Tx wavelength on one end has to match the Rx wavelength on the other. MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page. |

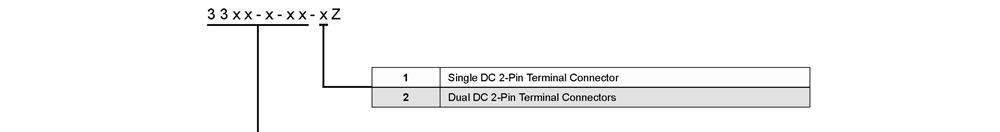

1 = Single DC 2-Pin Terminal Power Connector |
2 = Dual DC 2-Pin Terminal Power Connectors |
Z = Extended temperature (-40 to 75°C) |
RuggedNet GHPoEBT/Mi IEEE 802.3bt 100W Models | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Fiber Type | Distance | Connector Type | Tx/Rx Lambda (nm) | Min. Tx Power (dBm) | Max. Tx Power (dBm) | Min. Rx Power (dBm) | Max. Rx Power (dBm) | Min Atten (dB) | Link Budget (dB) | ||||
ST | SC | LC | SFP | RJ-45 | |||||||||
MM/DF | 220/550m1 | 3340B-0-14-pZ | 3342B-0-14-pZ | 3346B-0-14-pZ | - | - | 850/850 | -10 | -4 | -17 | -3 | - | 7 |
MM/DF (x2) | 220/550m1 | - | - | 3346B-0-24-pZ | - | - | 850/850 | -10 | -4 | -17 | -3 | - | 7 |
MM/DF | 2km | - | 3342B-6-14-pZ | - | - | - | 1310/1310 | -9.5 | -3 | -19.5 | -3 | - | 10 |
SM/DF | 12km | 3341B-1-14-pZ | 3343B-1-14-pZ | 3347B-1-14-pZ | - | - | 1310/1310 | -9.5 | -3 | -19.5 | -3 | - | 10 |
SM/DF (x2) | 12km | - | - | 3347B-1-24-pZ | - | - | 1310/1310 | -9.5 | -3 | -19.5 | -3 | - | 10 |
SM/DF | 34km | - | 3343B-2-14-pZ | - | - | - | 1310/1310 | -5 | 0 | -23 | -3 | 3 | 18 |
SM/DF | 80km | - | 3343B-3-14-pZ | - | - | - | 1550/1550 | -5 | 0 | -23 | -3 | 3 | 18 |
SM/DF | 110km | - | 3343B-4-14-pZ | - | - | - | 1550/1550 | 0 | 5 | -24 | -3 | 8 | 24 |
SM/DF | 140km | - | 3343B-5-14-pZ | - | - | - | 1550/1550 | 2 | 5 | -28 | -8 | 13 | 30 |
MM/SF2 | 220/550m1 | - | 3350B-0-14-pZ | - | - | - | 1310/1550 | -9 | -3 | -18 | -3 | - | 9 |
MM/SF2 | 220/550m1 | - | 3351B-0-14-pZ | - | - | - | 1550/1310 | -9 | -3 | -18 | -3 | - | 9 |
SM/SF2 | 20km |
- | 3351B-1-14-pZ | - | - | - | 1310/1550 | -9.5 | -3 | -20 | -3 | - | 10.5 |
SM/SF2 | 20km |
- | 3351B-1-14-pZ | - | - | - | 1550/1310 | -9.5 | -3 | -20 | -3 | - | 10.5 |
SM/SF2 | 40km |
- | 3351B-2-14-pZ | - | - | - | 1310/1550 | -3 | 0 | -20 | -3 | 3 | 17 |
SM/SF2 | 40km |
- | 3351B-2-14-pZ | - | - | - | 1550/1310 | -3 | 0 | -20 | -3 | 3 | 17 |
SFP (x1) | - | - | - | - | 3359B-0-14-pZ | - | - | - | - | - | - | - | - |
SFP (x2) | - | - | - | - | 3359B-0-24-pZ | - | - | - | - | - | - | - | - |
RJ-45 (x2) | 100m | - | - | - | - | 3359B-1-24-pZ | - | - | - | - | - | - | - |
1 62.5/125µm, 100/140µm multimode fiber up to 220m. 50/125µm multimode fiber up to 550m. 2 When using single-fiber (SF) models, the Tx wavelength on one end has to match the Rx wavelength on the other. MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page. |
1 = Single DC 2-Pin Terminal Power Connector |
2 = Dual DC 2-Pin Terminal Power Connectors |
Z = Extended temperature (-40 to 75°C) |
Model Number | Description | |
---|---|---|
8260-3 | Wall Mounting Plate | |
8260-0 | 19" rack mount shelf |
Model | Product Operating Temperature Range | Watts Required | Industrial Power Supply Model and Operating Temperature Range | |
---|---|---|---|---|
-25 to 70C | -30 to 70C | |||
GHPoEBT/Mi 60W | Commercial / Wide / Extended | 250 watts | 9170-PS-480 | - |
GHPoEBT/Mi 100W | Commercial / Wide | 410 watts | 9170-PS-480 | - |
GHPoEBT/Mi 100W | Extended | 410 watts | - | 9170-PS-960 |
RuggedNet GHPoEBT/Mi (Data Sheet)
RuggedNet GHPoEBT/Mi (Quick Start)
RuggedNet Command Line Interface (User Manual)
RuggedNet Web Interface (User Manual)
OmniConverter / RuggedNet 2.5 Hierarchical CLI (User Manual)
Wall Mount Plate (User Manual)
9170-PS-480-Industrial-Power-Supply
9170-PS-960-Industrial-Power-Supply
3300B-0-14-1Z, 3300B-0-14-2Z, 3301B-1-14-1Z, 3301B-1-14-2Z, 3302B-0-14-1Z, 3302B-0-14-2Z, 3302B-6-14-1Z, 3302B-6-14-2Z, 3303B-1-14-1Z, 3303B-1-14-2Z, 3303B-2-14-1Z, 3303B-2-14-2Z, 3303B-3-14-1Z, 3303B-3-14-2Z, 3303B-4-14-1Z, 3303B-4-14-2Z, 3303B-514-1Z, 3303B-514-2Z, 3306B-0-14-1Z, 3306B-0-14-2Z, 3306B-0-24-1Z, 3306B-0-24-2Z, 3307B-1-14-1Z, 3307B-1-14-2Z, 3307B-1-24-1Z, 3307B-1-24-2Z, 3310B-0-14-1Z, 3310B-0-14-2Z, 3311B-0-14-1Z, 3311B-0-14-2Z, 3310B-1-14-1Z, 3310B-1-14-2Z, 3311B-1-14-1Z, 3311B-1-14-2Z, 3310B-2-14-1Z, 3310B-2-14-2Z, 3311B-2-14-1Z, 3311B-2-14-2Z, 3319B-0-14-1Z, 3319B-0-14-2Z, 3319B-0-24-1Z, 3319B-1-24-1Z, 3319B-0-24-2Z, 3319B-1-24-2Z, 3340B-0-14-1Z, 3340B-0-14-2Z, 3341B-1-14-1Z, 3341B-1-14-2Z, 3342B-0-14-1Z, 3342B-0-14-2Z, 3342B-6-14-1Z, 3342B-6-14-2Z, 3343B-1-14-1Z, 3343B-1-14-2Z, 3343B-2-14-1Z, 3343B-2-14-2Z, 3343B-3-14-1Z, 3343B-3-14-2Z, 3343B-4-14-1Z, 3343B-4-14-2Z, 3343B-5-14-1Z, 3343B-5-14-2Z, 3346B-0-14-1Z, 3346B-0-14-2Z, 3346B-0-24-1Z, 3346B-0-24-2Z, 3347B-1-14-1Z, 3347B-1-14-2Z, 3347B-1-24-1Z, 3347B-1-24-2Z, 3350B-0-14-1Z, 3350B-0-14-2Z, 3351B-0-14-1Z, 3351B-0-14-2Z, 3350B-1-14-1Z, 3350B-1-14-2Z, 3351B-1-14-1Z, 3351B-1-14-2Z, 3350B-2-14-1Z, 3350B-2-14-2Z, 3351B-2-14-1Z, 3351B-2-14-2Z, 3359B-0-14-1Z, 3359B-0-14-2Z, 3359B-0-24-1Z, 3359B-1-24-1Z, 3359B-0-24-2Z, 3359B-1-24-2Z,
