A PoE extender, also known as a PoE repeater, is a device that extends the Power over Ethernet (PoE) connection distance between the PoE-powered device (PD) and the PoE injector or switch (PSE). This means you can power and connect PoE-enabled devices, such as VoIP phones, IP cameras, and wireless access points, over longer distances than the standard 328 feet (100 meters). PoE extenders work by regenerating the PoE signal and extending it over an additional Ethernet cable.
PoE extenders and PoE injectors are both devices that can be used to power PoE devices. However, there are some key differences between the two.
A PoE Extender is designed to extend the range of a PoE connection. It can be used to connect PoE devices to a PoE switch or injector that is located beyond 100 meters, and be powered by PoE.
A PoE injector is similar to a PoE Extender in that they both provide PoE power to the PD. However, the PoE injector only received data from a network switch. It is powered from a local AC or DC power source, and injects or adds power and transmits the data over a single UTP cable. The PoE-compatible device, such as an IP camera or wireless access point, extracts the power it needs from the Ethernet cable while also receiving data for communication.
When using PoE extenders, you can expect to add an additional 100 meters to the overall distance with each extender installed. However, it's important to note that each extender introduces some signal attenuation, and the actual extension distance may vary based on the specific extender, cable quality, and the power requirements of the connected devices.
There are two main types of PoE extenders: active and passive. While passive PoE extenders employ capacitors to store and release PoE power, active PoE extenders use their power source to magnify the PoE signal. Although active PoE extenders are often more expensive than passive ones, they offer more reliable power delivery and a larger range for PoE signals.

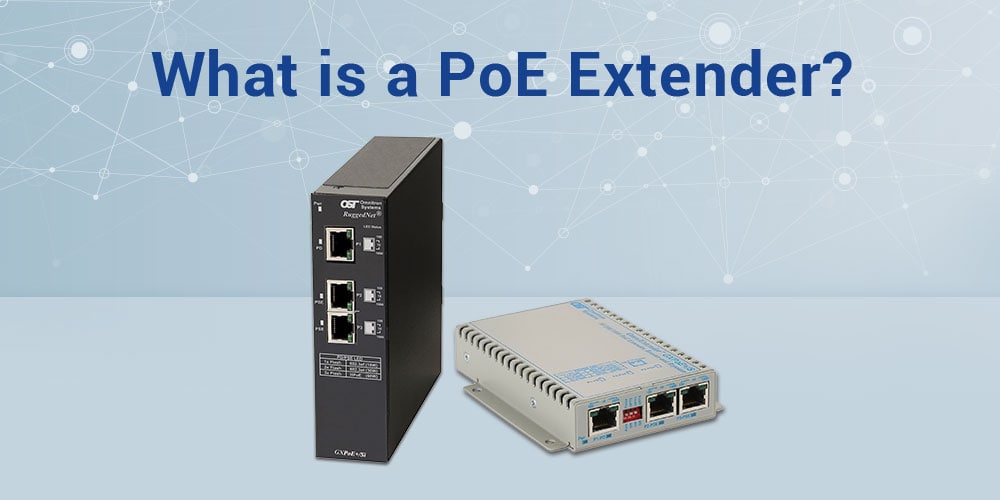

Omnitron PoE Extenders are unmanaged 10/100/1000BASE-T gigabit extenders that function as both PD and PSE require no external AC power and enable the delivery of data and PoE beyond the limitation of twisted pair copper cabling. Omnitron PoE Extenders feature one PoE/PD port and up to two PoE/PSE ports and can be powered by an IEEE 802.3at or High-Power (HPoE) 60W power source. They are available in three operating temperature ranges: Commercial (0 to +50ºC), wide (-40 to +60ºC), and industrial (-40 to +75ºC).
This application is showing a PoE Extender powering an 802.3at PoE camera and achieving a distance of 200 meters (656 feet) between an 802.3at PoE PSE switch and the camera.
In this application, a daisy chain consisting of three Omnitron PoE Extenders is powered by an HPoE 60W PoE PSE switch. PoE Extenders with one RJ-45 PoE/PD port and two RJ-45 PoE/PSE ports are used to install PoE cameras at the first and second PoE Extender sites. The daisy chain extends to the third PoE Extender and to the final PoE camera for a distance of 400 meters (1,312 feet).
The power budget of your PoE switch or injector determines how many PoE extenders you can utilize. A PoE switch or injector has limited power that it can provide to PoE devices. Each PoE extender typically draws around 5 Watts of power as well, so you will need to calculate this into your power budget when determining how much power needs to be delivered.
Here are five top reasons to use a PoE extender:
Yes, PoE extenders need power to operate. They typically get their power from the PoE switch or injector that they are connected to.
PoE extenders are a valuable tool for network administrators and IT professionals. They can be utilized to simplify network management, eliminate the need for additional power cables, and increase the range of PoE connections.
If you are considering using PoE extenders, contact Omnitron Systems to get pre-sale support. We are available 24 hours a day, 7 days a week, and 365 days a year, to answer your questions. Call us now.
